Week 5 and 6.1 - Sorting the Building Middle Floor Section

After thinking I had sorted the .json files  I found out the hard way this week, that once I converted my nodes into an HDA, my python code stopped working, so I guess this will go back onto my To-Do list.
On the bright sight I made quite a bit of progress with the building construction itself and got the middle floor section into a working state.

1 - Corners

First I went back into the Corner Node, cleaned up the code a bit and got rid of a bug, where depending on where point 0 was, it would not get assigned an instance attribute, because some of the angles where messed up. I fixed this by appending point 0 to the point array and working with that instead of always adding a special case for the last point of the curve.

	#include <math.h>
	//VARIABLES
	int points[] = primpoints(geoself(), 0);
	int numCorners = len(points);
	append(points, 0);
	vector pointPos[];
	vector edgeDir[];
	float cornerAngles[];
	//get available corner pieces
	string corner_90_param = chs("../kit_storage/mfloor_kit_corner_90");
	string corner_90_pieces[] = split(corner_90_param);
	string corner_45_param = chs("../kit_storage/mfloor_kit_corner_45");
	string corner_45_pieces[] = split(corner_45_param);
	//set corner pieces
	int cornerIndex = (chi('../../mfloor_corner_index')) % len(corner_90_pieces);
	string default_corner_45 = corner_45_pieces[cornerIndex];
	string default_corner_90 = corner_90_pieces[cornerIndex];
	float wallHeight = getbbox_size(chs("../../" + default_corner_90 + "/" + default_corner_90 + "/file"))[1];
	//get point positions
	for(int i = 0; i < len(points); i++) {
	vector newPos = pointattrib(geoself(), "P", points[i], 1);
	pointPos[i] = newPos;
	setpointattrib(geoself(), "scale", i, set(1,1,1), "set");
	//printf('%g: %e \n', points[i], pointPos[i]);
	}
	//Direction Vectors between Points
	for(int i = 0; i < len(points)-1; i++) {
	vector dir = normalize(pointPos[i+1]-pointPos[i]);
	edgeDir[i] = dir;
	//printf('%g - %g, Vector: %e \n', points[i], points[i+1], edgeDir[i]);
	}
	append(edgeDir, edgeDir[0]);
	//get angles
	for(int i = 0; i < len(edgeDir) - 1; i++){
	int ptIndex = (i+1) % numCorners;
	vector v1 = set(edgeDir[i][0], 0, edgeDir[i][2]);
	vector v2 = set(edgeDir[i + 1][0], 0, edgeDir[i + 1][2]);
	float angle = atan2(v2[2], v2[0])-atan2(v1[2], v1[0]);
	if(angle > PI) {
	angle -= 2 * PI;
	}
	else if(angle <= PI * -1) {
	angle += 2 * PI;
	}
	angle = degrees(angle);
	vector n;
	//90 degree corners
	if(abs(rint(angle)) >= 89 && abs(rint(angle)) <= 91){
	n = v2 * -1;
	if(angle < 0) {
	float theta = radians(-90);
	float cs = cos(theta);
	float sn = sin(theta);
	float px = n[0] * cs - n[2] * sn;
	float pz = n[0] * sn + n[2] * cs;
	n = set(px, n[1], pz);
	}
	setpointattrib(geoself(), "N", ptIndex, n, "set");
	setattrib(geoself(), "point", "instance", ptIndex, 0, "../../" + default_corner_90, "set");
	vector dim_max = getbbox_max(chs("../../" + default_corner_90 + "/" + default_corner_90 + "/file"));
	float x_max = dim_max[0];
	setattrib(geoself(), "point", "piece_x_size", ptIndex, 0, x_max, "set");
	cornerAngles[ptIndex] = 90;
	}
	//45 degree corners
	else if(abs(rint(angle)) >= 44 && abs(rint(angle)) <= 46){
	n = v2 * -1;
	if(angle < 0) {
	float theta = radians(-90);
	float cs = cos(theta);
	float sn = sin(theta);
	float px = n[0] * cs - n[2] * sn;
	float pz = n[0] * sn + n[2] * cs;
	n = set(px, n[1], pz);
	}
	else {
	float theta = radians(45);
	float cs = cos(theta);
	float sn = sin(theta);
	float px = n[0] * cs - n[2] * sn;
	float pz = n[0] * sn + n[2] * cs;
	n = set(px, n[1], pz);
	}
	setpointattrib(geoself(), "N", ptIndex, n, "set");
	setattrib(geoself(), "point", "instance", ptIndex, 0, "../../" + default_corner_45, "set");
	vector dim_max = getbbox_max(chs("../../" + default_corner_45 + "/" + default_corner_45 + "/file"));
	float x_max = dim_max[0];
	setattrib(geoself(), "point", "piece_x_size", ptIndex, 0, x_max, "set");
	cornerAngles[ptIndex] = 45;
	}
	printf("%g: %f \n",(i+1) % numCorners, cornerAngles[ptIndex]);
	}

view raw set_corner_pieces.v hosted with ❤ by GitHub

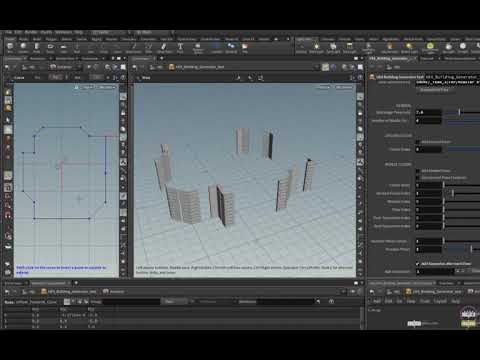

This is of course only working for one floor, so I adapted it later, when working on the floor separation. Also I added a parameter for selecting the corner pieces.

2 - Wall Sections

Going back to the wall sections I basically got rid of all my previous code for them. As I stated in a previous blog post, we didn't want to have any scaled tiles, except plain wall tiles, where scaling doesn't matter.
However, since Litha added pillars to the modular kit and wanted to have parameters for 'Number of pillars' per building side and 'Wall Tiles in between Pillars' I had to change the way of how I calculated the tile positioning.
I ended up breaking this down into the following steps:

1. Calculate the total length of the pillar + in between tiles section and check if it fits onto the building side
2. Calculate the number of tiles that fit on each side of the pillar section (needs to be an even number)
3. Fill the rest of the wall length with scaled plain wall tiles.

We agreed to have the pillar section in the centre of the building side for now. Of course it would be possible to add the option of offsetting the section, but  we'll have to see, if it is necessary.

The code bit for this looks like this, again this version only working for one floor, but I will show the multiple floor version later:

	//VARIABLES
	int points[] = primpoints(geoself(), 0);
	append(points, points[0]);
	int numPt = len(points);
	//modular kit piece arrays
	//pillars
	string pillars = chs('../kit_storage/mfloor_kit_pillar');
	string pillarArray[] = split(pillars);
	int pillarIndex = int(chi('../../mfloor_pillar_index')%len(pillarArray));
	string pillarRef = '../../'+ pillarArray[pillarIndex];
	int numPillars = chi('../../num_pillars');
	float pillarWidth = getbbox_size(chs('../../' + pillarArray[0] + '/' + pillarArray[0] + '/file' ))[0];
	//plain wall
	string wall = chs('../kit_storage/mfloor_kit_wall');
	string wallRef = '../../'+ wall;
	//wall pieces
	string wallPieces = chs('../kit_storage/mfloor_kit_ww');
	string wallPieceArray[] = split(wallPieces);
	float wallWidth = getbbox_size(chs('../../' + wall + '/' + wall + '/file' ))[0];
	int numWallPieces = chi('../../num_pieces_btwn_pillars');
	//windows
	string windows = chs('../kit_storage/mfloor_kit_window');
	string windowArray[] = split(windows);
	string windowsRd[], windowsSq[];
	//sort windows
	for(int w = 0; w < len(windowArray); w++){
	if ( match('*rd*', tolower(windowArray[w])) == 1){
	append(windowsRd, windowArray[w]);
	}
	else if ( match('*sq*', tolower(windowArray[w])) == 1){
	append(windowsSq, windowArray[w]);
	}
	}
	//Function for adding windows to the Window Frames
	void addWindows (string wRd[]; string wSq[]; string wPiece; vector wNormal; vector wPos) {
	int wIndex = chi('../../mfloor_window_index') % len(wRd);
	int wPt;
	string wRef;
	if (match('*rd*', tolower(wPiece))) {
	wRef = '../../' + wRd[wIndex];
	wPt = addpoint(geoself(), wPos);
	setpointattrib(geoself(), 'instance', wPt, wRef, 'set');
	setpointattrib(geoself(), 'scale', wPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', wPt, wNormal, 'set');
	}
	else if (match('*sq*', tolower(wPiece))){
	wRef = '../../' + wSq[wIndex];
	wPt = addpoint(geoself(), wPos);
	setpointattrib(geoself(), 'instance', wPt, wRef, 'set');
	setpointattrib(geoself(), 'scale', wPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', wPt, wNormal, 'set');
	}
	}
	//PLACE WALL SECTIONS
	for(int i = 0; i < numPt - 1; i++){
	//PREP
	// start and end point position
	vector startPointPos = pointattrib(geoself(), 'P', points[i], 1);
	vector endPointPos = pointattrib(geoself(), 'P', points[i + 1], 1);
	vector dir = normalize(endPointPos - startPointPos);
	// start and end position, taking corner piece width into consideration
	vector startPos = startPointPos + (pointattrib(geoself(), 'piece_x_size', points[i], 1)*dir);
	vector endPos = endPointPos - (pointattrib(geoself(), 'piece_x_size', points[i + 1], 1)*dir);
	//normal for placing the pieces on the edges
	vector n = set(dir[2], 0, dir[0] * -1);
	float dist = distance(startPos, endPos);
	//only place tiles, if corner pieces don't overlap
	if ( (pointattrib(geoself(), 'piece_x_size', points[i], 1) + pointattrib(geoself(), 'piece_x_size', points[i + 1], 1)) < distance(startPointPos, endPointPos) ) {
	//CALCULATE SECTIONS
	float sectionWidth = (numWallPieces * wallWidth) * clamp(numPillars - 1, 0, 10) + numPillars * pillarWidth;
	sectionWidth *= int(sectionWidth < dist);
	int numSections;
	numSections = int((sectionWidth != 0));
	numWallPieces *= int(numPillars > 1);
	//num tiles on each side of pillar section
	float restWidth = dist - sectionWidth;
	int numPieces;
	if (sectionWidth != 0) {
	numPieces = int(floor((restWidth/2)/wallWidth));
	numPieces -= (numPieces % 2) * (1 - int(sectionWidth < dist));
	}
	else {
	numPieces = int(floor(restWidth / wallWidth));
	}
	//filler
	float fillerWidth;
	if (sectionWidth != 0) {
	fillerWidth = (restWidth - ((numPieces * 2) * wallWidth))/2;
	}
	else {
	fillerWidth = (restWidth - ((numPieces) * wallWidth))/2;
	}
	float fillerScaleX = fillerWidth / wallWidth;
	//PLACE PIECES
	//place filler pieces
	vector tempPos;
	vector tempStartPos;
	vector tempEndPos;
	vector pillarStartPos;
	int tempPt;
	int pieceIndex = chi('../../mfloor_wframe_index') % len(wallPieceArray);
	string piece = wallPieceArray[pieceIndex];
	string pieceRef = '../../'+ piece;
	if(fillerWidth != 0) {
	if(dist > wallWidth) {
	tempPos = startPos + ((fillerWidth/2) * dir);
	//Start Filler
	tempPt = addpoint(geoself(), tempPos);
	tempStartPos = tempPos;
	setpointattrib(geoself(), 'instance', tempPt, wallRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(fillerScaleX,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	//End Pos
	tempPt = addpoint(geoself(), endPos - ((fillerWidth/2) * dir));
	tempEndPos = endPos - ((fillerWidth/2) * dir);
	setpointattrib(geoself(), 'instance', tempPt, wallRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(fillerScaleX,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	}
	else {
	tempPos = startPos + (fillerWidth * dir);
	tempPos = startPos + (fillerWidth * dir);
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, wallRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(fillerScaleX * 2,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	}
	}
	//place outside wall tiles
	if (numPieces != 0){
	if(sectionWidth != 0){
	for (int p = 0; p < numPieces; p++){
	//place a tile both at the start and end of the wall
	tempPos = tempStartPos + (wallWidth * dir)/2 + (wallWidth * dir) * p + (fillerWidth * dir)/2;
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, pieceRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	if (p == numPieces - 1) {
	pillarStartPos = tempPos;
	}
	addWindows(windowsRd, windowsSq, piece, n, tempPos);
	tempPos = tempEndPos - (wallWidth * dir)/2 - (wallWidth * dir) * p - (fillerWidth * dir)/2;
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, pieceRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	addWindows(windowsRd, windowsSq, piece, n, tempPos);
	}
	}
	else {
	for (int p = 0; p < numPieces; p++) {
	tempPos = tempStartPos + (wallWidth * dir)/2 + (wallWidth * dir) * p + (fillerWidth * dir)/2;
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, pieceRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	addWindows(windowsRd, windowsSq, piece, n, tempPos);
	}
	}
	}
	//if no wall tiles get placed
	else {
	pillarStartPos = tempPos + (fillerWidth * dir)/2;
	}
	//place pillar sections
	if(numSections != 0){
	printf('Pillar Start Pos: %e \n', pillarStartPos);
	printf('NumPieces: %g \n', numPieces);
	for (int pl = 0; pl < numPillars; pl++){
	vector pillarPos;
	if(numPieces != 0){
	pillarPos = (pillarStartPos + (wallWidth * dir)/2 + (pillarWidth * dir)/2 + (pillarWidth * dir) * pl) + ((numWallPieces * wallWidth)*dir)*pl;
	}
	else {
	pillarPos = (pillarStartPos + (pillarWidth * dir)/2 + (pillarWidth * dir) * pl) + ((numWallPieces * wallWidth)*dir)*pl;
	}
	tempPt = addpoint(geoself(), pillarPos);
	setpointattrib(geoself(), 'instance', tempPt, pillarRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	for (int sWall = 0; sWall < numWallPieces; sWall++){
	if(pl < numPillars - 1){
	vector wallPos = pillarPos + (pillarWidth * dir)/2 + (wallWidth * dir)/2 + (wallWidth * dir)*sWall;
	tempPt = addpoint(geoself(), wallPos);
	setpointattrib(geoself(), 'instance', tempPt, pieceRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	addWindows(windowsRd, windowsSq, piece, n, wallPos);
	}
	}
	}
	}
	}
	}

view raw set_wall_pieces.v hosted with ❤ by GitHub

I originally also thought about somehow calculating the maximum amount of pillars, with the given number of in between pieces, but for now I left it to just fill the wall with tiles, if the specified pillar amount doesn't fit.
I also, similar to the corner pieces, added Parameters to switch through the window frame, window, and pillar meshes.

3 - Floor and Roof Separation

After having figured out the basics for the corners and walls, I moved on to implementing multiple floors, including the option to either add separation pieces to every floor, or to add them only to specific floors.
For the top floor it automatically uses the roof separation tiles, instead of the floor separation ones.

When adding the corners to each row of the building, I also added an attribute to the points, depending on whether it was a wall, floor separation or roof separation row, so I could add the corresponding tiles, when adding the wall sections.

Here are the updated code bits for corners and walls.

	#include <math.h>
	//VARIABLES
	int points[] = primpoints(geoself(), 0);
	int numCorners = len(points);
	append(points, 0);
	vector pointPos[];
	vector edgeDir[];
	float cornerAngles[];
	vector cornerNormals[];
	float cornerXSizes[];
	//FLOORS AND SEPARATION LISTS
	int numFloors = chi('../../numFloors');
	// Add Separation after each Floor
	int sepForEachFloor = chi('../../chk_floor_sep');
	// Add Separation --> only applicable, if sepForEachFloor == 0
	int numFloorSep = chi('../../mp_separation');
	int floorSepIndices[];
	for (int i = 1; i <= numFloorSep; i++){
	int floorIndex = chi('../../sep_floor_num'+itoa(i));
	int inArray = find(floorSepIndices, floorIndex);
	printf('%g is in Array: %g \n', floorIndex, inArray);
	if (inArray < 0) {
	append(floorSepIndices, floorIndex);
	}
	}
	//MFLOOR CORNER PIECES
	string corner_90_param = chs("../kit_storage/mfloor_kit_corner_90");
	string corner_90_pieces[] = split(corner_90_param);
	string corner_45_param = chs("../kit_storage/mfloor_kit_corner_45");
	string corner_45_pieces[] = split(corner_45_param);
	//set corner pieces
	int cornerIndex = (chi('../../mfloor_corner_index')) % len(corner_90_pieces);
	string default_corner_45 = corner_45_pieces[cornerIndex];
	string default_corner_90 = corner_90_pieces[cornerIndex];
	float wallHeight = getbbox_size(chs("../../" + default_corner_90 + "/" + default_corner_90 + "/file"))[1];
	//SEPARATION CORNER PIECES
	//fsep
	string fsep_corner_45 = chs('../kit_storage/fsep_kit_corner_45');
	string fsep_corner_90 = chs('../kit_storage/fsep_kit_corner_90');
	string fsep_45_array[] = split(fsep_corner_45);
	string fsep_90_array[] = split(fsep_corner_90);
	//rsep
	string rsep_corner_45 = chs('../kit_storage/rsep_kit_corner_45');
	string rsep_corner_90 = chs('../kit_storage/rsep_kit_corner_90');
	string rsep_45_array[] = split(rsep_corner_45);
	string rsep_90_array[] = split(rsep_corner_90);
	//set fsep corner pieces
	int fSepIndex = (chi('../../fsep_index')) % len(fsep_90_array);
	int rSepIndex = (chi('../../rsep_index')) % len(rsep_90_array);
	string fsep_45 = fsep_45_array[fSepIndex];
	string fsep_90 = fsep_90_array[fSepIndex];
	string rsep_45 = rsep_45_array[rSepIndex];
	string rsep_90 = rsep_90_array[rSepIndex];
	float fSepHeight = getbbox_size(chs("../../" + fsep_90 + "/" + fsep_90 + "/file"))[1];
	float rSepHeight = getbbox_size(chs("../../" + rsep_90 + "/" + rsep_90 + "/file"))[1];
	float sepHeight = fSepHeight;
	//rsep
	//get point positions
	for(int i = 0; i < len(points); i++) {
	vector newPos = pointattrib(geoself(), "P", points[i], 1);
	pointPos[i] = newPos;
	//printf('%g: %e \n', points[i], pointPos[i]);
	}
	//Direction Vectors between Points
	for(int i = 0; i < len(points)-1; i++) {
	vector dir = normalize(pointPos[i+1]-pointPos[i]);
	edgeDir[i] = dir;
	//printf('%g - %g, Vector: %e \n', points[i], points[i+1], edgeDir[i]);
	}
	append(edgeDir, edgeDir[0]);
	//get angles
	for(int i = 0; i < len(edgeDir) - 1; i++){
	int ptIndex = (i+1) % numCorners;
	vector v1 = set(edgeDir[i][0], 0, edgeDir[i][2]);
	vector v2 = set(edgeDir[i + 1][0], 0, edgeDir[i + 1][2]);
	float angle = atan2(v2[2], v2[0])-atan2(v1[2], v1[0]);
	if(angle > PI) {
	angle -= 2 * PI;
	}
	else if(angle <= PI * -1) {
	angle += 2 * PI;
	}
	angle = degrees(angle);
	vector n;
	//90 degree corners
	if(abs(rint(angle)) >= 89 && abs(rint(angle)) <= 91){
	n = v2 * -1;
	if(angle < 0) {
	float theta = radians(-90);
	float cs = cos(theta);
	float sn = sin(theta);
	float px = n[0] * cs - n[2] * sn;
	float pz = n[0] * sn + n[2] * cs;
	n = set(px, n[1], pz);
	}
	setpointattrib(geoself(), "N", ptIndex, n, "set");
	vector dim_max = getbbox_max(chs("../../" + default_corner_90 + "/" + default_corner_90 + "/file"));
	float x_max = dim_max[0];
	setattrib(geoself(), "point", "piece_x_size", ptIndex, 0, x_max, "set");
	cornerXSizes[ptIndex] = x_max;
	cornerAngles[ptIndex] = 90;
	}
	//45 degree corners
	else if(abs(rint(angle)) >= 44 && abs(rint(angle)) <= 46){
	n = v2 * -1;
	if(angle < 0) {
	float theta = radians(-90);
	float cs = cos(theta);
	float sn = sin(theta);
	float px = n[0] * cs - n[2] * sn;
	float pz = n[0] * sn + n[2] * cs;
	n = set(px, n[1], pz);
	}
	else {
	float theta = radians(45);
	float cs = cos(theta);
	float sn = sin(theta);
	float px = n[0] * cs - n[2] * sn;
	float pz = n[0] * sn + n[2] * cs;
	n = set(px, n[1], pz);
	}
	setpointattrib(geoself(), "N", ptIndex, n, "set");
	vector dim_max = getbbox_max(chs("../../" + default_corner_45 + "/" + default_corner_45 + "/file"));
	float x_max = dim_max[0];
	setattrib(geoself(), "point", "piece_x_size", ptIndex, 0, x_max, "set");
	cornerXSizes[ptIndex] = x_max;
	cornerAngles[ptIndex] = 45;
	}
	cornerNormals[ptIndex] = n;
	}
	// vector dim_max = getbbox_max(chs("../../" + default_corner_90 + "/" + default_corner_90 + "/file"));
	// float x_max = dim_max[0];
	// setattrib(geoself(), "point", "piece_x_size", ptIndex, 0, x_max, "set");
	if(numFloors >= 1) {
	float heightOffset = 0;
	int useSep = 0;
	//loop through floors
	for (int f = 1; f <= numFloors; f++) {
	string sep_type = 'floor_sep';
	string sep_45 = fsep_45;
	string sep_90 = fsep_90;
	sepHeight = fSepHeight;
	if(f == numFloors) {
	sep_type = 'roof_sep';
	sep_45 = rsep_45;
	sep_90 = rsep_90;
	sepHeight = rSepHeight;
	}
	if( f == 1 ) {
	for ( int c = 0; c < numCorners; c++ ){
	if (rint(cornerAngles[c]) == 90){
	setpointattrib(geoself(), "instance", c, "../../" + default_corner_90, "set");
	setpointattrib(geoself(), "row_type", c, 'floor_wall', "set");
	}
	else if (rint(cornerAngles[c]) == 45){
	setpointattrib(geoself(), "instance", c, "../../" + default_corner_45, "set");
	setpointattrib(geoself(), "row_type", c, 'floor_wall', "set");
	}
	}
	//separation
	if ( sepForEachFloor || (find(floorSepIndices, f) >= 0)) {
	useSep = 1;
	for ( int c = 0; c < numCorners; c++ ) {
	vector tempPos = pointattrib(geoself(), 'P', points[c], 0);
	tempPos = set(tempPos[0], wallHeight, tempPos[2]);
	int pt = addpoint(geoself(), tempPos);
	if (rint(cornerAngles[c]) == 90){
	float dim = getbbox_max(chs("../../" + sep_90 + "/" + sep_90 + "/file"))[0];
	setpointattrib(geoself(), "instance", pt, "../../" + sep_90, "set");
	setpointattrib(geoself(), "N", pt, cornerNormals[c], "set");
	setpointattrib(geoself(), "scale", pt, set(1,1,1), "set");
	setpointattrib(geoself(), "piece_x_size", pt, dim, "set");
	setpointattrib(geoself(), "row_type", pt, sep_type, "set");
	}
	else if (rint(cornerAngles[c]) == 45){
	float dim = getbbox_max(chs("../../" + sep_45 + "/" + sep_45 + "/file"))[0];
	setpointattrib(geoself(), "instance", pt, "../../" + sep_45, "set");
	setpointattrib(geoself(), "N", pt, cornerNormals[c], "set");
	setpointattrib(geoself(), "scale", pt, set(1,1,1), "set");
	setpointattrib(geoself(), "piece_x_size", pt, dim, "set");
	setpointattrib(geoself(), "row_type", pt, sep_type, "set");
	}
	}
	}
	else {
	useSep = 0;
	}
	heightOffset += wallHeight + sepHeight * useSep;
	}
	else if ( f > 1 ) {
	for ( int c = 0; c < numCorners; c++ ){
	vector tempPos = pointattrib(geoself(), 'P', points[c], 0);
	tempPos = set(tempPos[0], heightOffset, tempPos[2]);
	int pt = addpoint(geoself(), tempPos);
	if (rint(cornerAngles[c]) == 90){
	setpointattrib(geoself(), "instance", pt, "../../" + default_corner_90, "set");
	setpointattrib(geoself(), "N", pt, cornerNormals[c], "set");
	setpointattrib(geoself(), "scale", pt, set(1,1,1), "set");
	setpointattrib(geoself(), "piece_x_size", pt, cornerXSizes[c], "set");
	setpointattrib(geoself(), "row_type", pt, 'floor_wall', "set");
	}
	else if (rint(cornerAngles[c]) == 45){
	setpointattrib(geoself(), "instance", pt, "../../" + default_corner_45, "set");
	setpointattrib(geoself(), "N", pt, cornerNormals[c], "set");
	setpointattrib(geoself(), "scale", pt, set(1,1,1), "set");
	setpointattrib(geoself(), "piece_x_size", pt, cornerXSizes[c], "set");
	setpointattrib(geoself(), "row_type", pt, 'floor_wall', "set");
	}
	}
	//separation
	if ( sepForEachFloor || (find(floorSepIndices, f) >= 0)) {
	useSep = 1;
	for ( int c = 0; c < numCorners; c++ ) {
	vector tempPos = pointattrib(geoself(), 'P', points[c], 0);
	tempPos = set(tempPos[0], heightOffset + wallHeight, tempPos[2]);
	int pt = addpoint(geoself(), tempPos);
	if (rint(cornerAngles[c]) == 90){
	float dim = getbbox_max(chs("../../" + sep_90 + "/" + sep_90 + "/file"))[0];
	setpointattrib(geoself(), "instance", pt, "../../" + sep_90, "set");
	setpointattrib(geoself(), "N", pt, cornerNormals[c], "set");
	setpointattrib(geoself(), "scale", pt, set(1,1,1), "set");
	setpointattrib(geoself(), "piece_x_size", pt, dim, "set");
	setpointattrib(geoself(), "row_type", pt, sep_type, "set");
	}
	else if (rint(cornerAngles[c]) == 45){
	float dim = getbbox_max(chs("../../" + sep_45 + "/" + sep_45 + "/file"))[0];
	setpointattrib(geoself(), "instance", pt, "../../" + sep_45, "set");
	setpointattrib(geoself(), "N", pt, cornerNormals[c], "set");
	setpointattrib(geoself(), "scale", pt, set(1,1,1), "set");
	setpointattrib(geoself(), "piece_x_size", pt, dim, "set");
	setpointattrib(geoself(), "row_type", pt, sep_type, "set");
	}
	}
	}
	else {
	useSep = 0;
	}
	heightOffset += wallHeight + sepHeight * useSep;
	}
	useSep = 0;
	}
	}

view raw set_corner_pieces_multiple_floors.v hosted with ❤ by GitHub

	//VARIABLES
	int points[] = primpoints(geoself(), 0);
	int numPtFloor = len(points);
	int numPt = @numpt;
	int numRows = numPt / numPtFloor;
	//modular kit piece arrays
	//pillars
	string pillars = chs('../kit_storage/mfloor_kit_pillar');
	string pillarArray[] = split(pillars);
	int pillarIndex = int(chi('../../mfloor_pillar_index')%len(pillarArray));
	string pillarRef = '../../'+ pillarArray[pillarIndex];
	int numPillars = chi('../../num_pillars');
	float pillarWidth = getbbox_size(chs('../../' + pillarArray[0] + '/' + pillarArray[0] + '/file' ))[0];
	//plain wall
	string wall = chs('../kit_storage/mfloor_kit_wall');
	string wallRef = '../../'+ wall;
	float wallWidth = getbbox_size(chs('../../' + wall + '/' + wall + '/file' ))[0];
	//wall pieces
	string wallPieces = chs('../kit_storage/mfloor_kit_ww');
	string wallPieceArray[] = split(wallPieces);
	int pieceIndex = chi('../../mfloor_wframe_index') % len(wallPieceArray);
	string piece = wallPieceArray[pieceIndex];
	string pieceRef = '../../'+ piece;
	int numWallPieces = chi('../../num_pieces_btwn_pillars');
	//windows
	string windows = chs('../kit_storage/mfloor_kit_window');
	string windowArray[] = split(windows);
	string windowsRd[], windowsSq[];
	//sort windows
	for(int w = 0; w < len(windowArray); w++){
	if ( match('*rd*', tolower(windowArray[w])) == 1){
	append(windowsRd, windowArray[w]);
	}
	else if ( match('*sq*', tolower(windowArray[w])) == 1){
	append(windowsSq, windowArray[w]);
	}
	}
	// floor separation
	string fSep = chs('../kit_storage/fsep_kit_wall');
	string fSepPillar = chs('../kit_storage/fsep_kit_pillar');
	string fSepArray[] = split(fSep);
	string fSepPillarArray[] = split(fSepPillar);
	string fSepRef = '../../' + fSepArray[0];
	string fSepPillarRef = '../../' + fSepPillarArray[0];
	// roof separation
	string rSep = chs('../kit_storage/rsep_kit_wall');
	string rSepArray[] = split(rSep);
	int rSepIndex = chi('../../rsep_index') % len(rSepArray);
	string rSepRef = '../../' + rSepArray[rSepIndex];
	//Function for adding windows to the Window Frames
	void addWindows (string wRd[]; string wSq[]; string wPiece; vector wNormal; vector wPos) {
	int wIndex = chi('../../mfloor_window_index') % len(wRd);
	int wPt;
	string wRef;
	if (match('*rd*', tolower(wPiece))) {
	wRef = '../../' + wRd[wIndex];
	wPt = addpoint(geoself(), wPos);
	setpointattrib(geoself(), 'instance', wPt, wRef, 'set');
	setpointattrib(geoself(), 'scale', wPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', wPt, wNormal, 'set');
	}
	else if (match('*sq*', tolower(wPiece))){
	wRef = '../../' + wSq[wIndex];
	wPt = addpoint(geoself(), wPos);
	setpointattrib(geoself(), 'instance', wPt, wRef, 'set');
	setpointattrib(geoself(), 'scale', wPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', wPt, wNormal, 'set');
	}
	}
	int numFloors = chi('../../numFloors');
	//PLACE WALL SECTIONS
	if (numFloors > 0) {
	for (int r = 0; r < numRows; r++) { //loop through wall and separation rows
	//get points belonging to each row
	int rowPoints[] = {};
	int start = r * numPtFloor;
	for ( int c = 0; c < numPtFloor; c++ ) {
	append(rowPoints, start + c);
	}
	append(rowPoints, start);
	string rowType = pointattrib(geoself(), 'row_type', rowPoints[0], 1);
	//place wall tiles
	for (int c = 0; c < len(rowPoints)-1; c++) { //loop through corner points
	//PREP
	// start and end point position
	vector startPointPos = pointattrib(geoself(), 'P', rowPoints[c], 1);
	vector endPointPos = pointattrib(geoself(), 'P', rowPoints[c + 1], 1);
	vector dir = normalize(endPointPos - startPointPos);
	// start and end position, taking corner piece width into consideration
	vector startPos = startPointPos + (pointattrib(geoself(), 'piece_x_size', rowPoints[c], 1)*dir);
	vector endPos = endPointPos - (pointattrib(geoself(), 'piece_x_size', rowPoints[c + 1], 1)*dir);
	//normal for placing the pieces on the edges
	vector n = set(dir[2], 0, dir[0] * -1);
	float dist = distance(startPos, endPos);
	//only place tiles, if corner pieces don't overlap
	if ( (pointattrib(geoself(), 'piece_x_size', rowPoints[c], 1) + pointattrib(geoself(), 'piece_x_size', rowPoints[c + 1], 1)) < distance(startPointPos, endPointPos) ) {
	//CALCULATE SECTIONS
	float sectionWidth = (numWallPieces * wallWidth) * clamp(numPillars - 1, 0, 10) + numPillars * pillarWidth;
	sectionWidth *= int(sectionWidth < dist);
	int numSections;
	numSections = int((sectionWidth != 0));
	numWallPieces *= int(numPillars > 1);
	//num tiles on each side of pillar section
	float restWidth = dist - sectionWidth;
	int numPieces;
	if (sectionWidth != 0) {
	numPieces = int(floor((restWidth/2)/wallWidth));
	numPieces -= (numPieces % 2) * (1 - int(sectionWidth < dist));
	}
	else {
	numPieces = int(floor(restWidth / wallWidth));
	}
	//filler
	float fillerWidth;
	if (sectionWidth != 0) {
	fillerWidth = (restWidth - ((numPieces * 2) * wallWidth))/2;
	}
	else {
	fillerWidth = (restWidth - ((numPieces) * wallWidth))/2;
	}
	float fillerScaleX = fillerWidth / wallWidth;
	//PLACE PIECES
	//place filler pieces
	vector tempPos;
	vector tempStartPos;
	vector tempEndPos;
	vector pillarStartPos;
	int tempPt;
	if (fillerWidth != 0) {
	string fillerRef = wallRef;
	if (rowType == 'floor_wall'){
	fillerRef = wallRef;
	}
	else if (rowType == 'floor_sep'){
	fillerRef = fSepRef;
	}
	else if (rowType == 'roof_sep'){
	fillerRef = rSepRef;
	}
	if(dist > wallWidth) {
	tempPos = startPos + ((fillerWidth/2) * dir);
	//Start Filler
	tempPt = addpoint(geoself(), tempPos);
	tempStartPos = tempPos;
	setpointattrib(geoself(), 'instance', tempPt, fillerRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(fillerScaleX,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	//End Pos
	tempPt = addpoint(geoself(), endPos - ((fillerWidth/2) * dir));
	tempEndPos = endPos - ((fillerWidth/2) * dir);
	setpointattrib(geoself(), 'instance', tempPt, fillerRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(fillerScaleX,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	}
	else {
	tempPos = startPos + (fillerWidth * dir);
	tempPos = startPos + (fillerWidth * dir);
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, fillerRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(fillerScaleX * 2,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	}
	}
	//place outside wall tiles
	if (numPieces != 0){
	string spareRef = pieceRef;
	if (rowType == 'floor_wall'){
	spareRef = pieceRef;
	}
	else if (rowType == 'floor_sep'){
	spareRef = fSepRef;
	}
	else if (rowType == 'roof_sep'){
	spareRef = rSepRef;
	}
	if(sectionWidth != 0){
	for (int p = 0; p < numPieces; p++){
	//place a tile both at the start and end of the wall
	tempPos = tempStartPos + (wallWidth * dir)/2 + (wallWidth * dir) * p + (fillerWidth * dir)/2;
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, spareRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	if (p == numPieces - 1) {
	pillarStartPos = tempPos;
	}
	if ( rowType == 'floor_wall') {
	addWindows(windowsRd, windowsSq, piece, n, tempPos);
	}
	tempPos = tempEndPos - (wallWidth * dir)/2 - (wallWidth * dir) * p - (fillerWidth * dir)/2;
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, spareRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	if ( rowType == 'floor_wall') {
	addWindows(windowsRd, windowsSq, piece, n, tempPos);
	}
	}
	}
	else {
	for (int p = 0; p < numPieces; p++) {
	tempPos = tempStartPos + (wallWidth * dir)/2 + (wallWidth * dir) * p + (fillerWidth * dir)/2;
	tempPt = addpoint(geoself(), tempPos);
	setpointattrib(geoself(), 'instance', tempPt, spareRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	if ( rowType == 'floor_wall') {
	addWindows(windowsRd, windowsSq, piece, n, tempPos);
	}
	}
	}
	}
	//if no wall tiles get placed
	else {
	pillarStartPos = tempPos + (fillerWidth * dir)/2;
	}
	//place pillar sections
	if(numSections != 0){
	string wpRef = pieceRef;
	string pRef = pillarRef;
	float xScale = 1;
	if (rowType == 'floor_wall'){
	wpRef = pieceRef;
	pRef = pillarRef;
	xScale = 1;
	}
	else if (rowType == 'floor_sep'){
	wpRef = fSepRef;
	pRef = fSepPillarRef;
	xScale = 1;
	}
	else if (rowType == 'roof_sep'){
	wpRef = rSepRef;
	pRef = rSepRef;
	xScale = pillarWidth / wallWidth;
	}
	printf('Pillar Start Pos: %e \n', pillarStartPos);
	printf('NumPieces: %g \n', numPieces);
	for (int pl = 0; pl < numPillars; pl++){
	vector pillarPos;
	if(numPieces != 0){
	pillarPos = (pillarStartPos + (wallWidth * dir)/2 + (pillarWidth * dir)/2 + (pillarWidth * dir) * pl) + ((numWallPieces * wallWidth)*dir)*pl;
	}
	else {
	pillarPos = (pillarStartPos + (pillarWidth * dir)/2 + (pillarWidth * dir) * pl) + ((numWallPieces * wallWidth)*dir)*pl;
	}
	tempPt = addpoint(geoself(), pillarPos);
	setpointattrib(geoself(), 'instance', tempPt, pRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(xScale,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	for (int sWall = 0; sWall < numWallPieces; sWall++){
	if(pl < numPillars - 1){
	vector wallPos = pillarPos + (pillarWidth * dir)/2 + (wallWidth * dir)/2 + (wallWidth * dir) * sWall;
	tempPt = addpoint(geoself(), wallPos);
	setpointattrib(geoself(), 'instance', tempPt, wpRef, 'set');
	setpointattrib(geoself(), 'scale', tempPt, set(1,1,1), 'set');
	setpointattrib(geoself(), 'N', tempPt, n, 'set');
	if (rowType == 'floor_wall') {
	addWindows(windowsRd, windowsSq, piece, n, wallPos);
	}
	}
	}
	}
	}
	} //end if
	} // end for c
	} // end for r
	}

view raw set_wall_pieces_multiple_floors.v hosted with ❤ by GitHub

I also brought the HDA into Unreal and it seems to be working alright, but we really need to figure out LODs, otherwise we sacrifice performance, where it is not necessary.

4 - Roof Mesh

Since the roof at that point was just a hole and might have caused issues with lighting (leaving aside, that in a game the rooftop might be visible), I needed to create a mesh from the footprint curve, which I had to do in a separate geometry node. Since Mike explained the use and advantages of detail attributes to me, I thought I could store the point positions of the curve in a detail attribute and use it to recreate the curve. I had some trouble figuring out how to get the attribute reference work with the coordinate parameter of the new curve, so I just used python, modified the attribute to fit the pattern of the coordinates and it ended up working.

	node = hou.pwd()
	geo = node.geometry()
	# Add code to modify contents of geo.
	# Use drop down menu to select examples.
	nGeo = hou.node('../../Instance/output0/').geometry()
	#print(nGeo.findGlobalAttrib('mfloor_curve_points'))
	#print(nGeo.attribValue('mfloor_curve_points'))
	curvePoints = nGeo.floatListAttribValue('mfloor_curve_points')
	mfloorHeight = nGeo.floatAttribValue('mfloor_height_total')
	print mfloorHeight
	def listChunks(l, n):
	for i in range(0, len(l), n):
	yield l[i: i+n]
	pointList = list(listChunks(curvePoints, 3))
	coordinateString = ''
	for i in pointList:
	coordinateString += str(i)[1:-1] + ' '
	curveNode = hou.node('../mfloor_roof')
	curveNode.parm('coords').set(coordinateString)
	transformNode = hou.node('../transform_height_offset')
	transformNode.parm('ty').set(mfloorHeight)

view raw read_detail_attribs.py hosted with ❤ by GitHub

After using a divide, poly-extrude and unwrap node, I ended up with a pretty usable roof mesh. I also stored the height of the mid floor section in a detail attribute and used it to offset it.

Complete Middle Floor Section

5 - To Do

1. Fix Import and Read .json file python code
2. Add Ground Floor Section
3. Figure out Material IDs !!
4. LODs
5. Collision
